Aerated Concrete Material and AAC (ALC) wall panel Type AAC panel

FOB Reference Price:Get Latest Price
US $120-150 / Cubic Meter | 30 Cubic Meter/Cubic Meters (Min. Order)
Supply Ability:
300000 Cubic Meter/Cubic Meters per Year
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Donyue AAC Block
Model Number:
B05 aac panel
Size:
Large (Height≥ 980mm)
Material:
Aerated Concrete
Type:
Decorative Concrete Blocks
Porosity:
Solid
average compressive strength:
3.5-5N/mm2
sound reduction:
30-60Db
Drying shrinkage value:
0.48mm/m
Application:
wall panel ,floor panel
Packaging & Delivery
Packaging Details
Standard wooden pallets with side protectors on all sides or as required
Delivery Time
10 days after receving the payment
Product Description

1. Introduction

Autoclaved  aerated concrete (AAC), also known as autoclaved lightweight concrete (ALC) or autoclaved cellular concrete (ACC)

It is a lightweight, precast building material that simultaneously provides structure, insulation, and fire and mold resistance.

AAC products include blocks, wall panels, floor and roof panels, and lintels. With cement, lime, silica sand as raw materials, adopting two-way and welded steel reinforcement mesh (reinforcing bar) processed by special anti-rust liquid, produced in high temperature, high pressure and steam curing, AAC panel is a kind of porous silicate plate of high performance, and has many incomparable performances of lightweight & high strength, good fire-resistance, fire prevention, sound insulation and thermal insulation etc.


2.Application

AAC panel not only can be used for the external walls, internal wall partitions, flat slope roof of the buildings, but also for roof and external walls of industrial plants. it can be used for the load-bearing walls of mixed structure building with less than 4 floors. Outsourcing fire panel of steel beam and columns.


3.Advantage

Low-carbon enviromental protection
AAC panel are made of inorganic materials, and can be recycled after removal without environmental pollution.

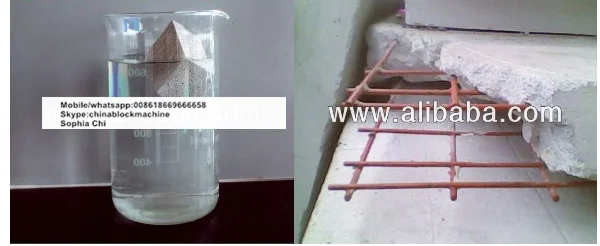

Lightweight & high strength

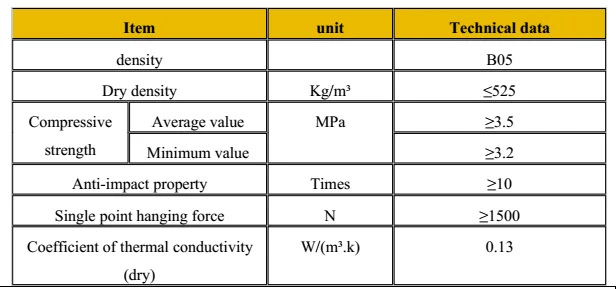

Porosity is about 80%, dry density is less than 500kg/cubic meter. With double layer & direction reinforcement mesh, compresive strength is more than 3.5 Mpa.

Thermal insulation

Inside AAC panel there is porous structure, the porosity is nearly 80%, so air becomes the major thermal conductivity  medium. Thermal conductivity is 0.13W/(m*k), thus satisfying the purpose of the insulation.

Fire proof

The raw materials of dongyueAAC panel adopt inorganic non-combustible materials, it has absolute incombustibility. Test shows 120mm thick AAC panel could resist fire for 4hours.

Noise insulation &absorption

Noise insulation of the AAC panel is 40-60DB, DONGYUE AAC panel also have closed porous characteristics, so it's also a good kind of sound absorbing materials

Efficient construction



Specification

Width: 600mm fixed
Length:600-6000mm
Thikness: 50-300mm per 25mm interval


Usage

1)External wall panel:2)internal wall panel 3)Roof panel 4)Floor panel

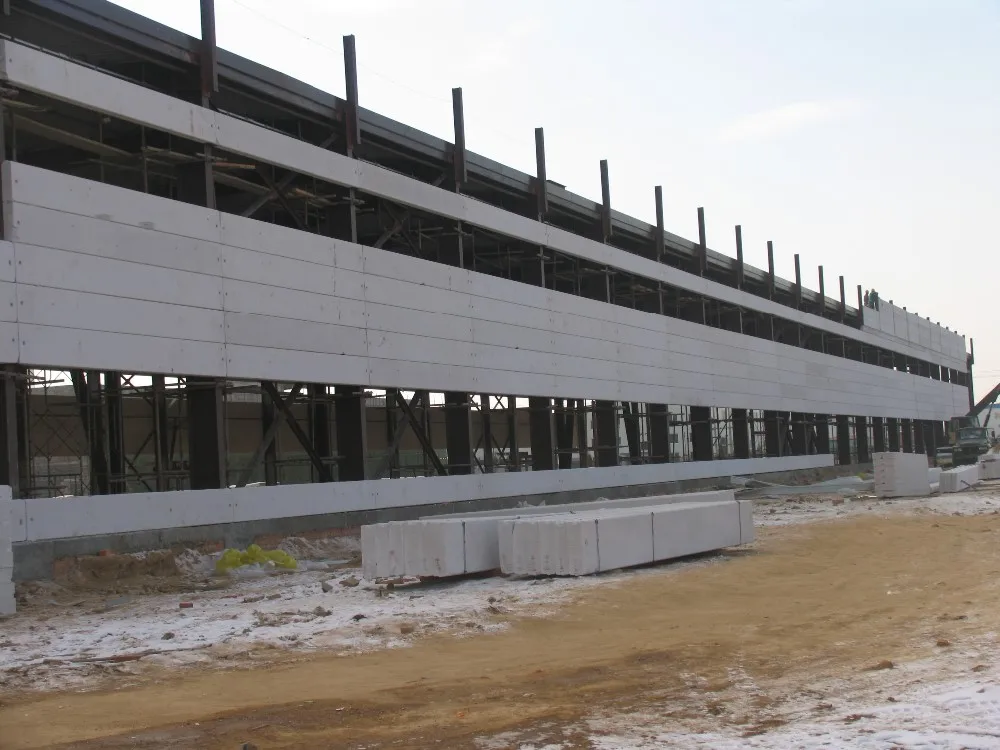

1) External Wall Panel

AAC panel can be used directly in exterior walls with steel structure. They have excellent heat insulation and noise reduction properties and will give comfortable and pleasant environment inside the building, with lower heating and cooling costs throughout the lifespan of building.

2) Internal Wall Panel

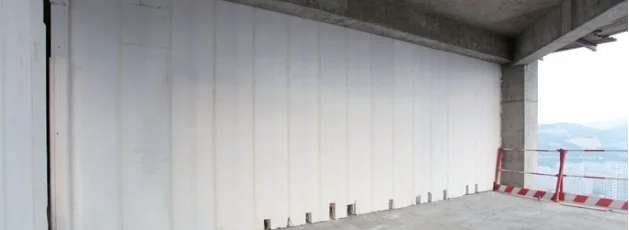

AAC panels can be used in the internal wall such as household walls, separating walls, partition walls in bathrooms and kitchens etc.. It has great workability and can be sawed, cut, drilled freely to hang various things such as air conditioning, water heater, radiator, wall cabinet etc.


Thickness(mm)
75
100
125
≥150
Length(mm)
≤3000
≤4000
≤5000
≤6000

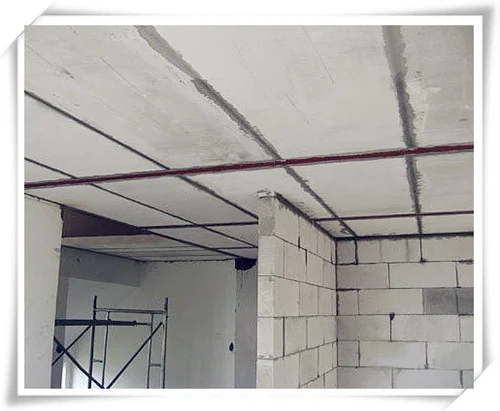

3) Floor Panel and Roof Panel

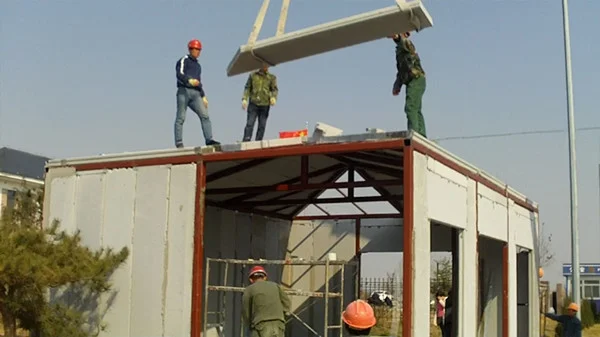

AAC floor panels with scientific reinforcement design and raw material proportion, ensure excellent bearing capacity, AAC floor and roof panel play a very different role, in most structures, a significant amount of energy is lost through roof , but AAC roof panels reduce the amount of thermal transmission. AAC Panels can be set flat or at an angle and work in tandem with many other waterproofing membranes, or can be framed over in steel or wood. AAC floor panels can easily be used in any project, and creates a stronger thermal mass because of the solid body. An experienced crew of eight can set 120 floor panels a day (3,600 square feet) with one small crane

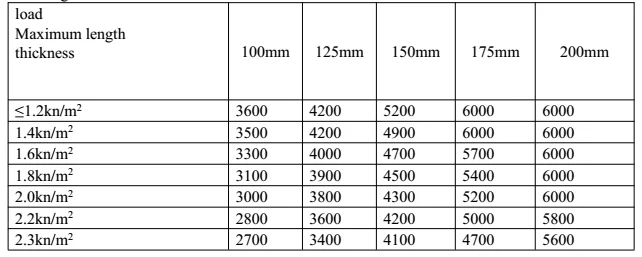

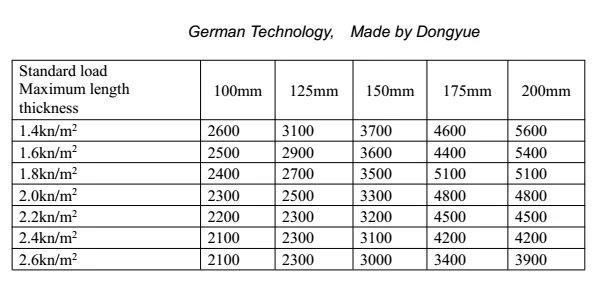

Note: Relevant reinforcement is to be designed according to the work load. The sizes of AAC panel will

be customized.


Construction

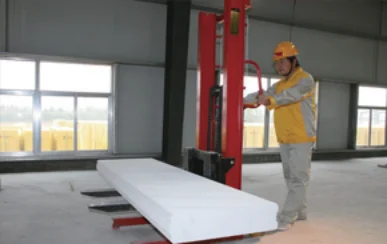

1.Five workers form a group. Use hydraulic trolley for transportation. Panels should be kept flat during the transportation. Pulling on the floor or unilateral support is forbidden during transportation. Use special fixture when lifting. Hoisting belt should be flexible nylon tie belt.

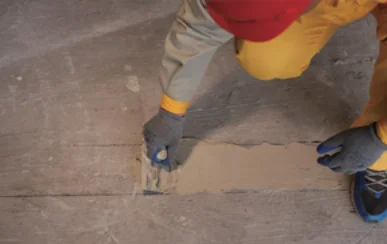

(2) Use 1:3 cement mortar on the bottom of the panel to make level, mortar thickness is 10-20mm.


3.While installation, one worker uses a chain hoist to make the panel stand up, other workers stabilize the panel to the corresponding location.

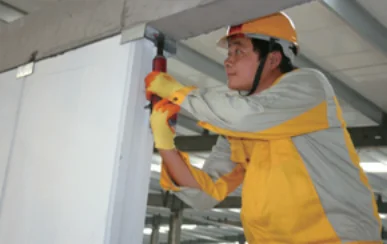

4.Each panel should be connected to major structure by a special U-Card which is shot on the panels

by nail gun.

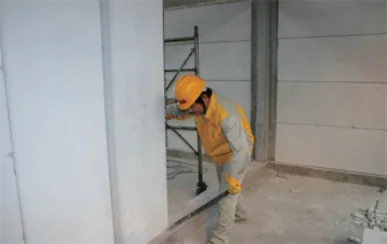

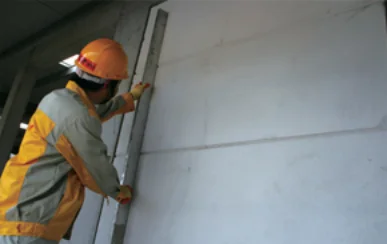

5.After panel is upright, adjust the verticality by a wadge stuffed on the bottom of the panel.

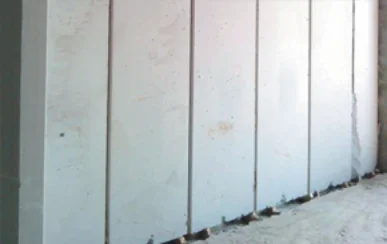

6.Groove between panels to bite each other should be close. Pay attention to control the verticality during the installation, and check up carefully after installation.

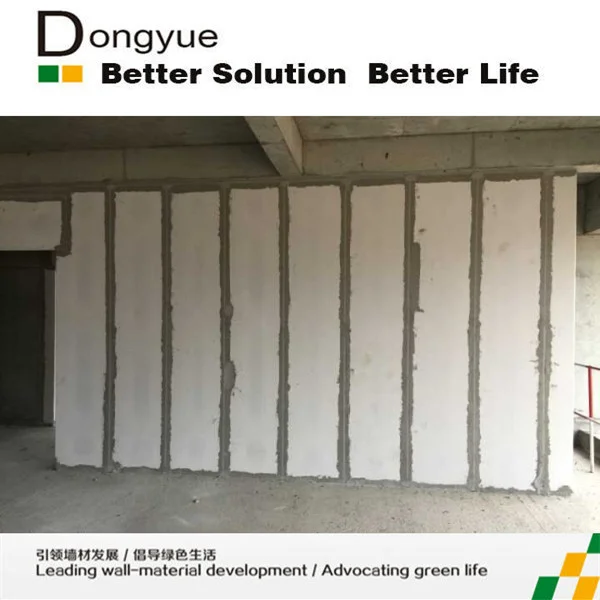

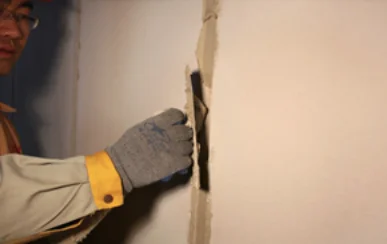

7.Gap between panels to be caulked by special mortar, and extra mortar should be pushed out while connecting panels. Then clean up adhesive cracks between panels, and use specialized pointing mortar to fill up gaps and level out.

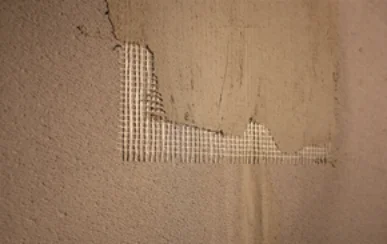

8.To avoid cracking on gaps between panels, cover the adhesive gap with a layer of 200mm wide alkali-resistance fibre mesh.


9. finshed


Packing & Delivery

Standard wooden pallets with side protectors on all sides or as required


Company introduction

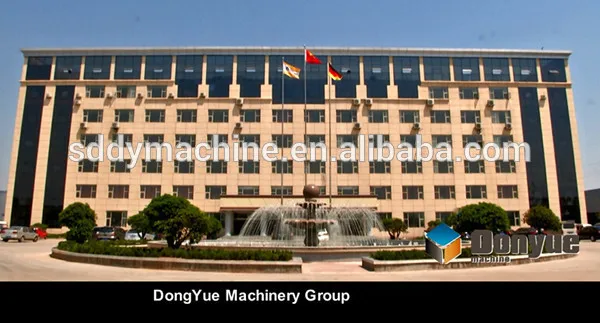

Our factory office

Dongyue machinery group

absorbed technical team from Germany AAC-concept Gmbh, the team of five members all have serviced for the German YTong more than 20 years. Make the Dongyue technology research and development capabilities in the world’s advanced level in the field of AAC. At the same time, there are 11 senior engineers, 31 senior technicians, and 160 technical backbones in respective fields in Dongyue. So far we have 15 line of AAC block machine in Indonesia,15 lines in India,5 lines in Vietnam,2 lines in Buma,2 lines in Mongolia ,1 line in Kazakhstan ,1 one in Bulgaria.

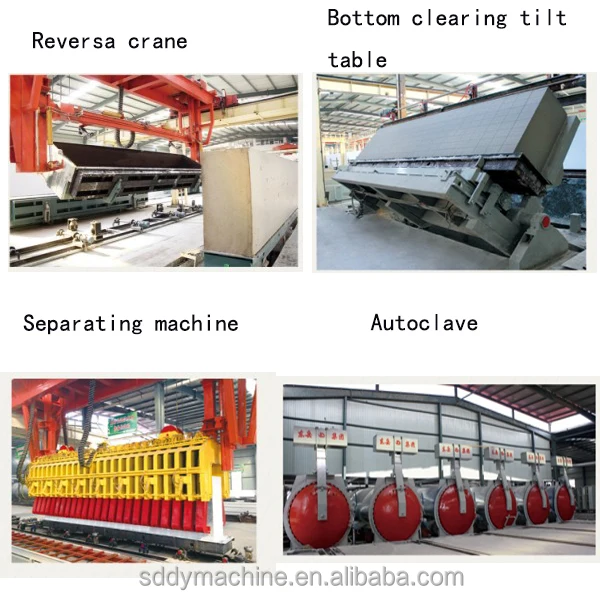

We have our own AAC BLOCK,AAC PANEL production line with production capacity 300000 CBM per year.
